Angle bracket 200x200mm

The 200×200 angle bracket is a tool designed for positioning and fixing spatial welded elements on a welding table.

Thanks to the use of round holes and beans, the user can position it both on the table and connect it to other tools. This allows you to create spatial structures while maintaining the correct angles of the welded elements.

Attached to the side of the welding table top, it can be used as a small table top extension or a shelf for parts to be welded later.

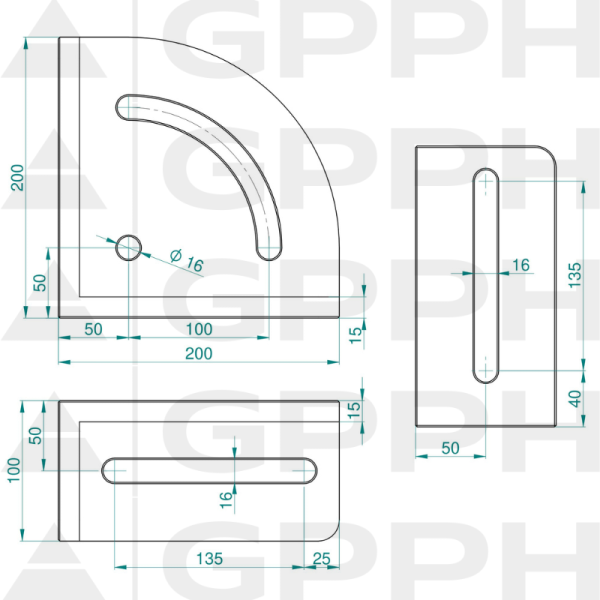

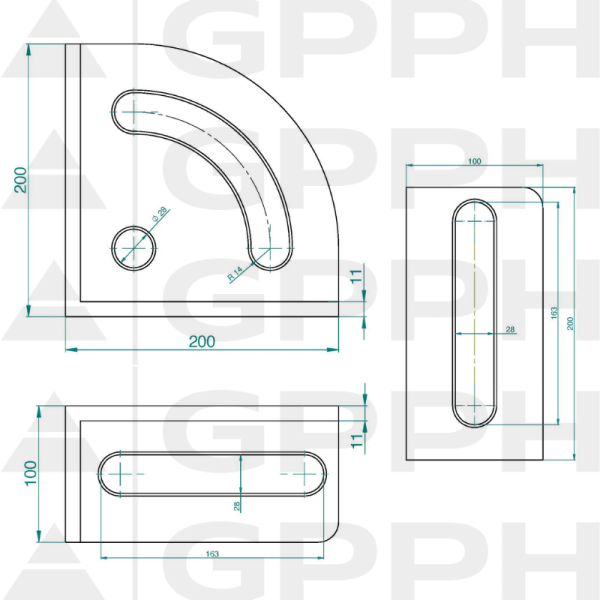

Available with φ16 mm and φ28 mm hole patterns.

• The 200×200 angle bracket from the EXPERT tool series can be used for welding tables from the EXPERT series.
• The 200×200 angle bracket from the PRO tool series can be used for welding tables from the PRO and XWT series, as well as for modular welding tables.
• The 200×200 angle bracket from the PLUS tool series can be used with welding tables from the PLUS, ECO, BASIC, DIY and XWT series.
