Logo GPPH
gpph smart
Economical welding table in the GPPH SMART series

ECONOMICAL WELDING TABLES GPPH SMART

Zapoznanie się z całą ofertą SMART nie zajmie Ci dłużej niż 3 minuty
It won't take you more than 3 minutes to familiarise yourself with the entire SMART range!

Discover the economical GPPH SMART line of welding tables, created for users who need robust and functional solutions but do not require the advanced features offered by professional welding tables.

The GPPH SMART represents the ideal combination of performance and affordability, tailored to the needs of both hobbyists and smaller workshops.

GPPH SMART

Who are the GPPH SMART tables for?

These tables are ideal for small workshops, hobbyists and any place where basic welding operations are required without the need for advanced equipment. These are tables that combine reliability and simplicity, allowing users to concentrate on their work without unnecessary complications.

Price list for tables with legs on feet

with hole system ⌀16mm and ⌀28mm in 100×100 grid
Worktop dimensionsNet price
GPPH SMART 15MM
Net price
GPPH SMART 12MM
1500x1000€ 1 580€ 1 120
1500x1480€ 1 840€ 1 260
2000x1000€ 1 720€ 1 220
2400x1200€ 2 170€ 1 490
3000x1480€ 3 680€ 2 520

Price list for tables with legs on wheels

with hole system ⌀16mm and ⌀28mm in 100×100 grid
Worktop dimensionsNet price
GPPH SMART 15MM
Net price
GPPH SMART 12MM
1500x1000€ 1 750€ 1 290
1500x1480€ 2 010€ 1 430
2000x1000€ 1 890€ 1 390
2400x1200€ 2 340€ 1 660
3000x1480€ 4 020€ 2 860

TABLE LEGS GPPH SMART

All GPPH SMART low-cost welding tables are available with legs on feet or on wheels.

GPPH SMART welding tables are available with legs on feet and on wheels

Table sizes

GPPH SMART welding tables is a line of economical welding tables that comes in two series:

  • with 15 mm thick tops;
  • with 12 mm thick tops;

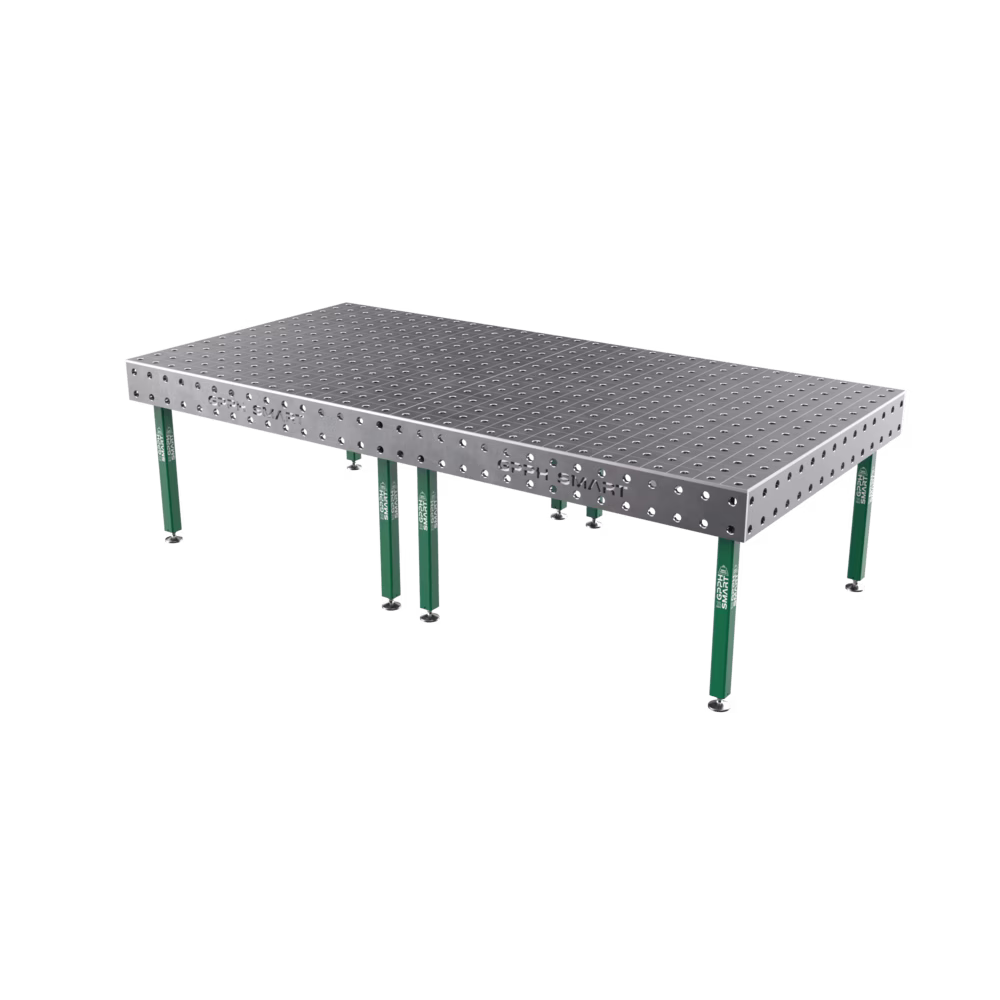

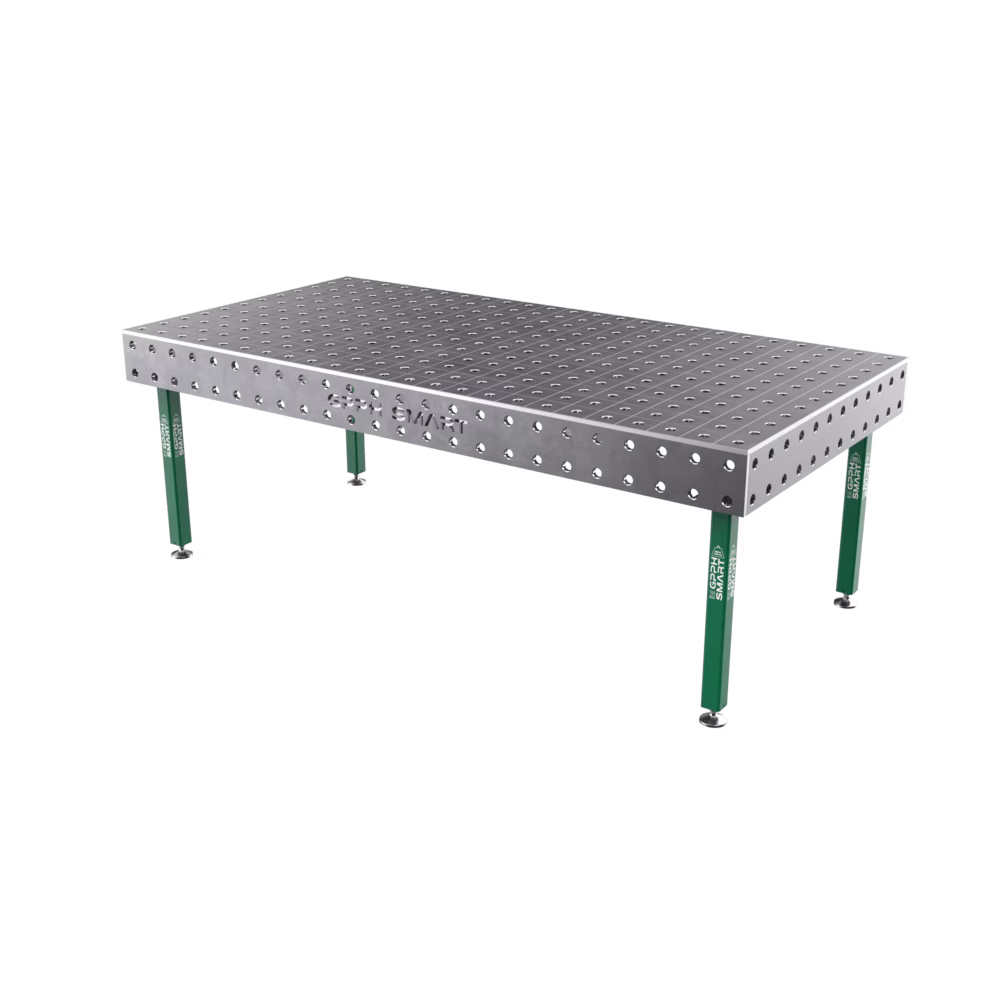

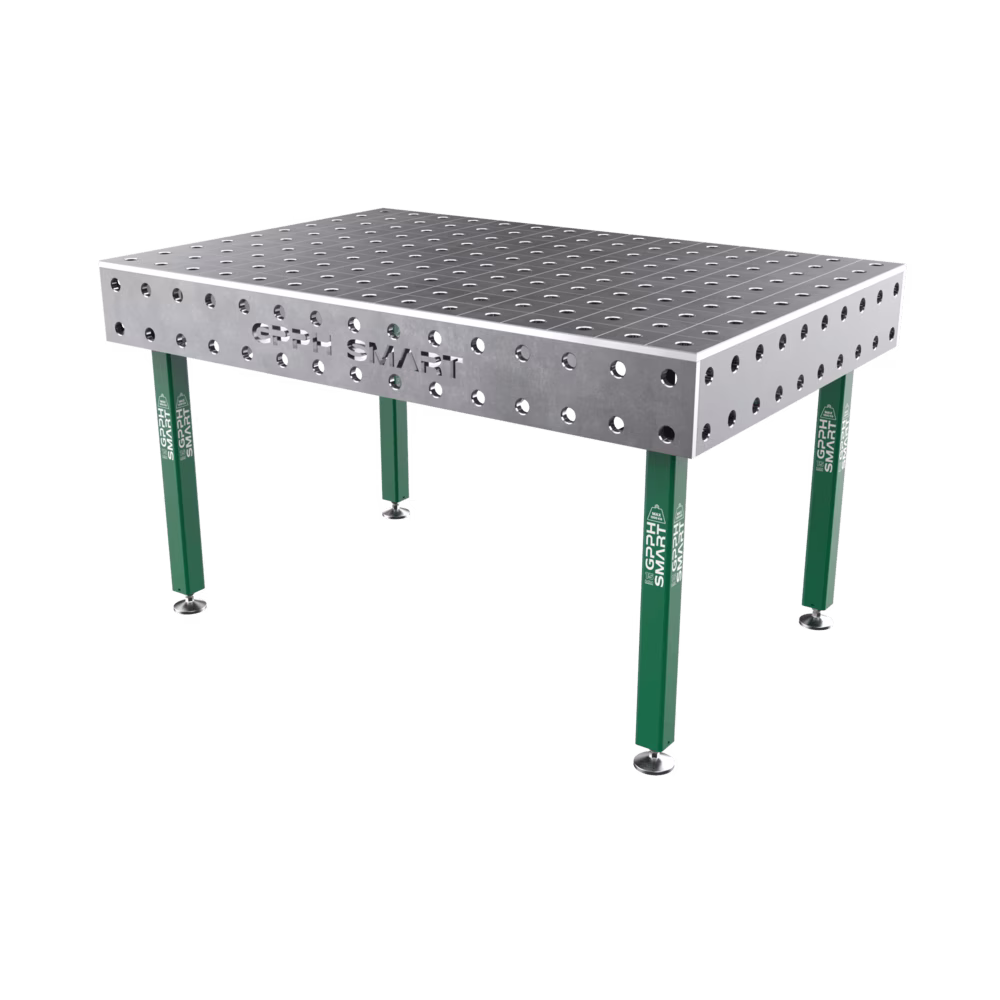

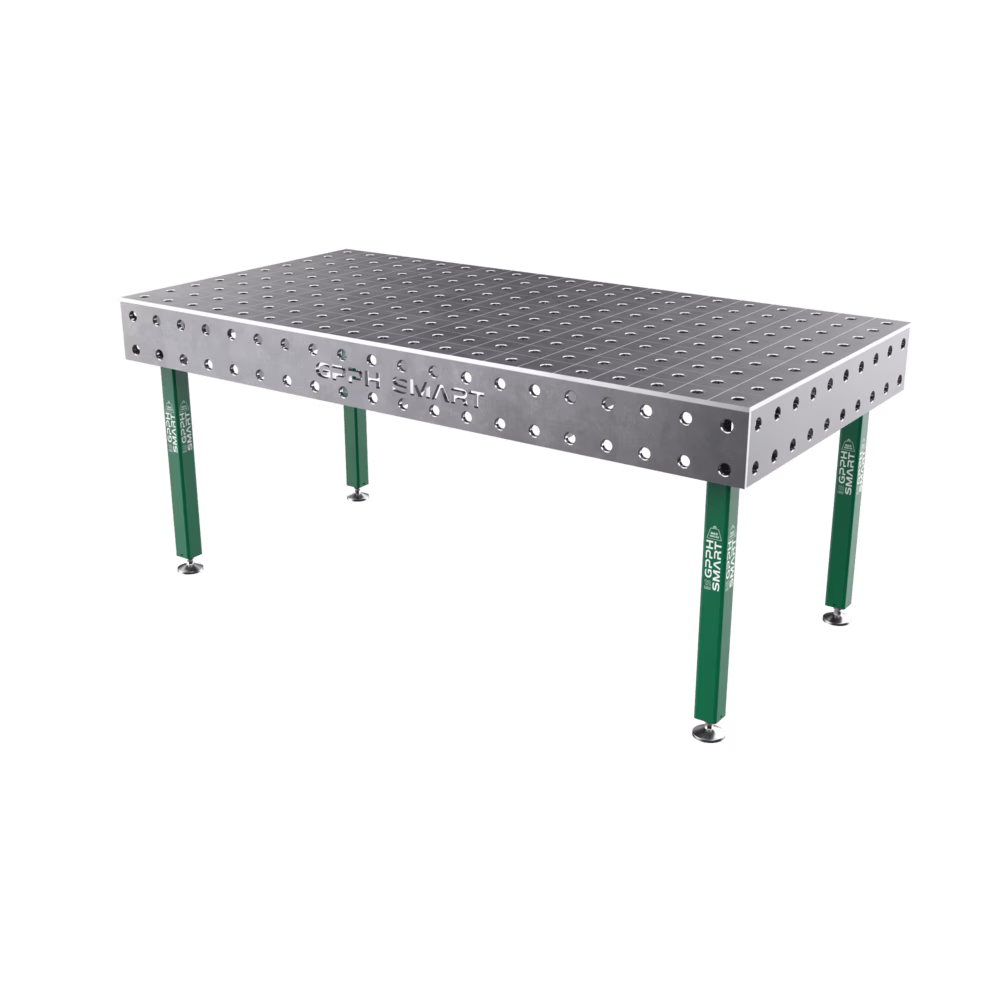

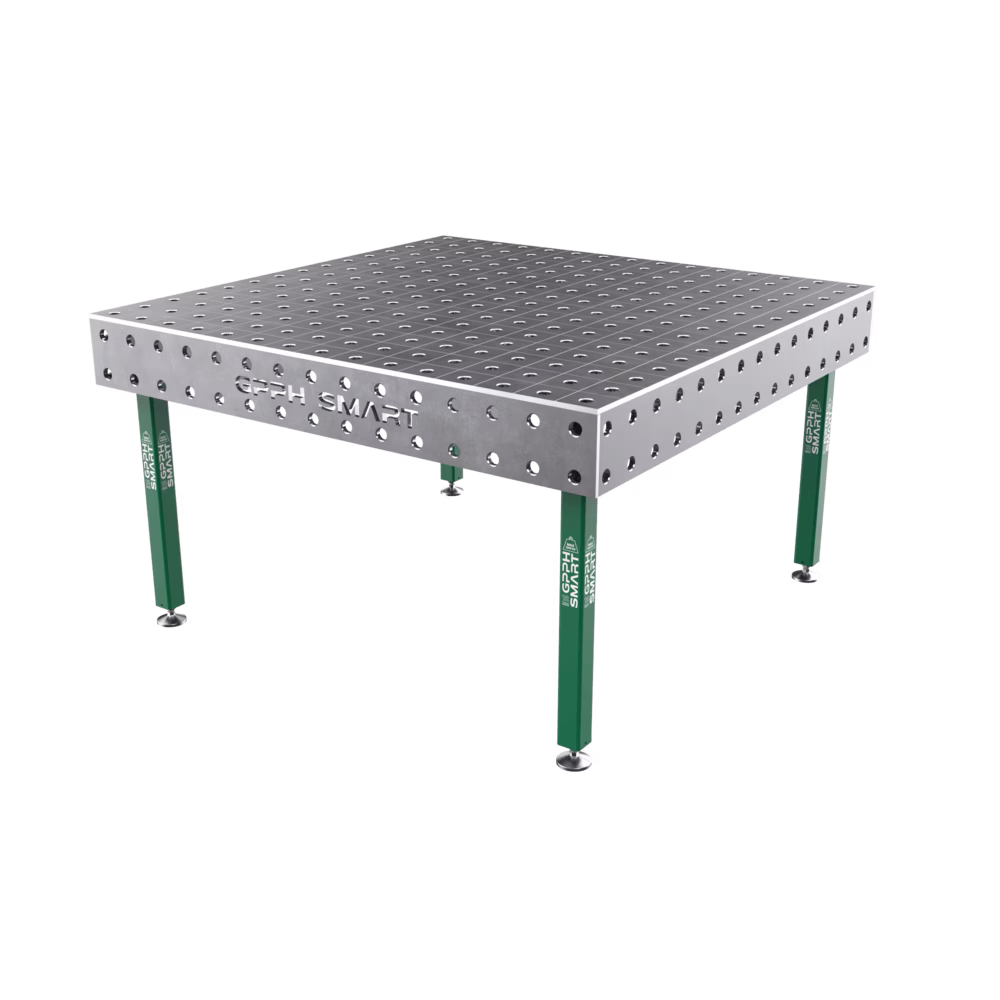

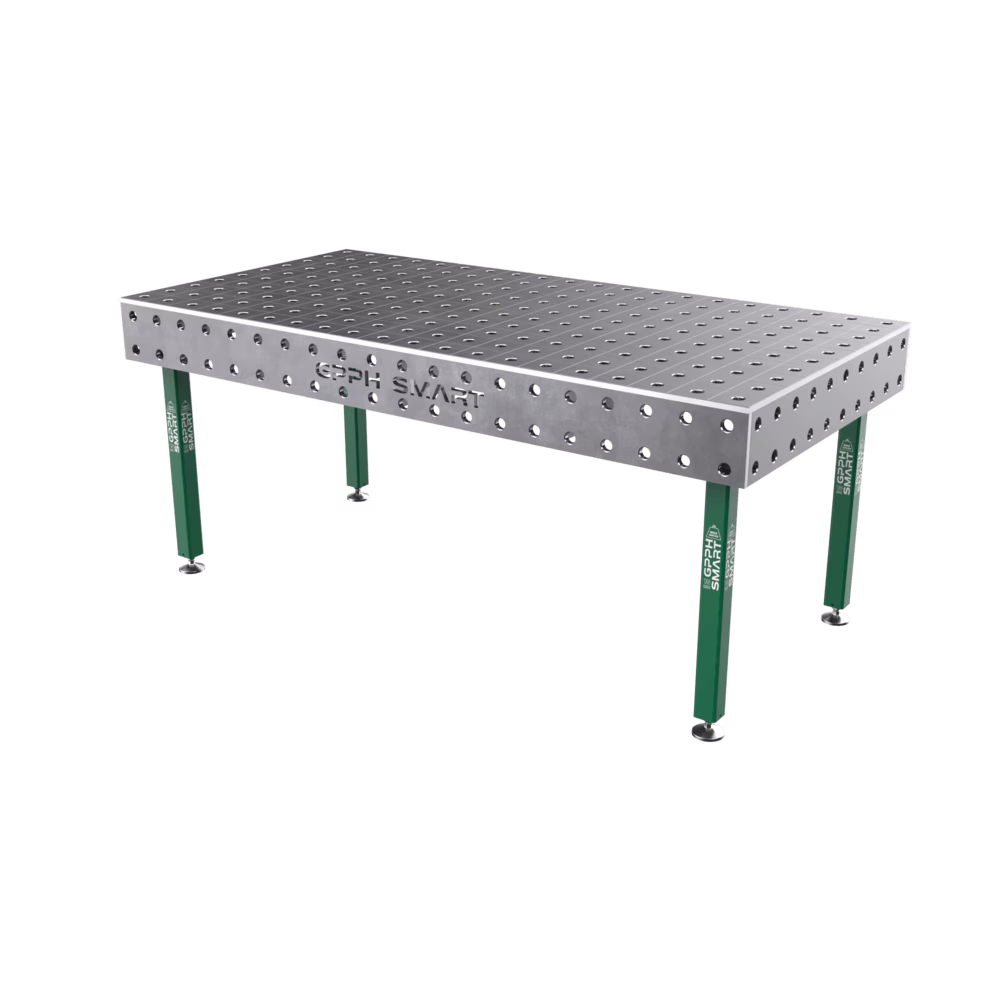

Available dimensions of GPPH SMART 15MM and SMART 12MM welding tables
1500x10001500x14802000x10002400x12003000x1480*

* Table 3000x1480 mm consists of two connected tables with a dimension of 1500x1480 mm

Hole systems

Depending on your preference, you can choose the GPPH SMART 15 MM or GPPH SMART 12 MM welding tables in the hole system.
Grid fi28, 100x100mm in GPPH SMART series welding table
Grid fi16, 100x100mm in GPPH SMART series welding table

Differences from traditional GPPH welding tables

Unlike our traditional professional tables, which are designed to meet the requirements of the most advanced applications, GPPH SMART focuses on basic functionality and ease of use. GPPH professional tables offer greater durability and advanced configuration options that are needed in intensive industrial environments. In addition, traditional GPPH professional welding tables have denser table top ribbing and a different leg attachment. They also differ in the profile of the leg design and the holes in the table side plates - traditional tables have 3 rows of holes, while the GPH SMART line has 2 rows.

In addition, the colour scheme of the legs of the GPPH SMART economy welding tables differs from that of the standard GPPH products.

The SMART line is the answer to the needs of a market demanding lower-cost solutions.

gpph smart

Comparison of GPPH SMART ribbing and Traditional welding tables

Seria
professional
Seria
SMART
Before After Ożebrowanie ekonomicznego stołu spawalniczego 3000x1480 z serii GPPH SMARTOżebrowanie ekonomicznego stołu spawalniczego 3000x1480 z serii GPPH SMART
Before After Ożebrowanie tradycyjnego stołu spawalniczego 2400x1200Ożebrowanie ekonomicznego stołu spawalniczego 2400x1200 z serii GPPH SMART
Before After Ożebrowanie ekonomicznego stołu spawalniczego 2000x1000 z serii GPPH SMARTOżebrowanie ekonomicznego stołu spawalniczego 2000x1000 z serii GPPH SMART
Before After Ożebrowanie tradycyjnego stołu spawalniczego 1500x1480Ożebrowanie ekonomicznego stołu spawalniczego 1500x1480 z serii GPPH SMART
Before After Ożebrowanie tradycyjnego stołu spawalniczego 1500x1000Ożebrowanie ekonomicznego stołu spawalniczego 1500x1000 z serii GPPH SMART
Seria
professional
Seria
SMART

Comparison of leg fixings

Before After Mocowanie nóg w tradycyjnych stołach spawalniczychMocowanie nóg w ekonomicznych stołach spawalniczych GPPH SMART

Comparison of side wall holes

Before After Tradycyjny stół spawalniczy z serii PROTani stół spawalniczy z serii GPPH SMART
Series of traditional welding tables GPPH PROGPPH SMART 15MM series of economic welding tables
Flatness tolerance: ±0.3 mm over the entire top*Flatness tolerance: ±0.5 mm over the entire top*
3 rows of holes on side wall2 rows of holes on side wall
Hole tolerance: ±0.05 mm
Milled and chamfered holes
Chamfered holes from bottom
Milled table top edges
Leg profile: 100x100x4mmLeg profile: 60x60x4mm
Load capacity: 700kg/leg
max. load capacity table with 4 legs: 2800kg
Maximum load capacity: 1800kg
Number of size versions: 10Number of size versions: 5
Side wall deflection tolerance: ±0,3°Side wall deflection tolerance: ±0,35°
Available hole grids: 100x100mm, 50x50mm, diagonalAvailable hole grids: 100x100mm
*provided that the table is leveled correctly.
Series of traditional welding tables GPPH PLUSGPPH SMART 12MM series of economic welding tables
Flatness tolerance: ±0.3 mm over the entire top*Flatness tolerance: ±0.5 mm over the entire top*
3 rows of holes on side wall2 rows of holes on side wall
Hole tolerance: ±0.05 mm
Milled and chamfered holes
Chamfered holes from bottom
Milled table top edges
Leg profile: 80x80x4mmLeg profile: 60x60x4mm
Load capacity: 500kg/leg
max. load capacity table with 4 legs: 2000kg
Maximum load capacity: 1200kg
Number of size versions: 10Number of size versions: 5
Side wall deflection tolerance: ±0,3°Side wall deflection tolerance: ±0,35°
Available hole grids: 100x100mm, 50x50mm, diagonalAvailable hole grids: 100x100mm
*provided that the table is leveled correctly.

TOOL KITS

GPPH SMART welding table tool kits are designed to get you started on welding tables, with flat structures.

If you need more tools, we have tool sets of 146, 96, 60 or 28 items in our standard range. Standard tool sets additionally contain spatial tools, more types of clamps, extensions, mobile shelf for extensions or tool trolleys.

Zestaw narzędzi nr 1 dedykowany do ekonomicznych stołów GPPH SMART

PRICE OF SMART SET NO. 1

15 mm | $1 461
12 mm | $1 299

Zestaw narzędzi nr 2 dedykowany do ekonomicznych stołów GPPH SMART

PRICE OF SMART SET NO. 2

15 mm | $701
12 mm | $634

NUMBER OF TOOLS IN EACH SET
NUMBER OF TOOLS IN EACH SETSMART Set No.1SMART Set No.2
Fast assembly bolt105
Positioning pin105
Fastening clamp54
Stop 15032
Stop 22532
Stop 2603-
Eccentric stop52
Angle precision square (flat) 275x1502-
Shelf for mounting pins S-1
Fast assembly bolt shelf M1-
Welding torch handle11
Total number of tools in the kit4322

Tools

To work on the economical GPPH SMART welding table, tools from the standard GPPH range are ideally suited to the needs of professionals and hobbyists alike. In our range you will find milled and chamfered tools that are perfectly matched to the specifications of each table in the SMART line.

PRO and PLUS tools - a perfect fit:

  • PRO tools will work perfectly with SMART 15 mm tables.
  • PLUS tools - ideally suited to 12 mm thick SMART tables.

Thanks to their precision manufacturing, GPPH tools provide excellent accuracy and repeatability of operations, which is crucial in advanced welding projects.

Using GPPH PRO and PLUS tools, users of GPPH SMART welding tables can rest assured that their work will not only be efficient, but also precise. Regardless of the scale of the project, these tools offer the reliability and quality that are synonymous with the GPPH brand.
