Angle bracket 185x175mm

Angle bracket 185x175mm, System - Φ28, Series - PRO

Angle bracket 185x175mm, System - Φ16, Series - PLUS

Angle bracket 185x175mm, System - Φ16, Series - PLUS technical drawing

Angle bracket 185x175mm, System - Φ28, Series - PLUS technical drawing

Angle bracket 185x175mm, System - Φ16, Series - PRO technical drawing

Angle bracket 185x175mm, System - Φ28, Series - PRO technical drawing

Angle bracket 185x175mm, System - Φ28, Series - EXPERT

Angle bracket 185x175mm, System - fi16, Series - PLUS

Angle bracket 185x175mm

0 reviews

The 185x175mm angle bracket is a tool designed for positioning and fixing spatial welded elements on a welding table.

Promotion -12%

From Pierwotna cena wynosiła: 209,00 zł257,07 zł.Aktualna cena wynosi: 183,92 zł226,22 zł. tax excl.including VAT

Lowest price in the last 30 days: 183,92 zł226,22 zł

SKU Not available Kategorie Welding angle brackets for welding table, Tools for welding tables

Shipping from warehouse: until days
Every order is prepared with the utmost care.

Secure and convenient payments
Card, bank transfer, deferred payment – choose the best option for you.

Polish manufacturer
We manufacture locally – with care, precision, and responsibility.

Professional customer service

Call us: +48 573 568 355 or write to us in the chat – We'll help you!

Parameters:

Select a variant to view its attributes.

Weight: 0,5kg
Tool dimensions: 185x175x65mm
Tool thickness: 11 mm, 15 mm or 25 mm
Hole grid: φ28 or φ16
Tool type: Spatial

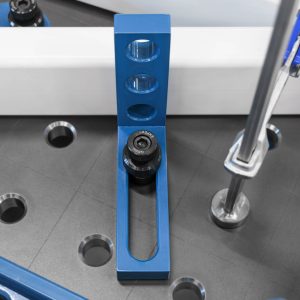

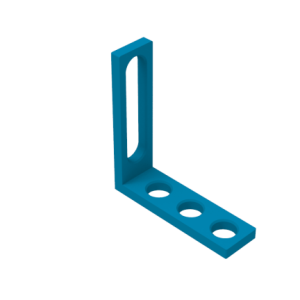

The 185×175 angle bracket is a tool designed for positioning and fixing spatial welded elements on a welding table.

Thanks to the use of round holes and beans, the user can position it both on the table and connect it to other tools. This allows you to create spatial structures while maintaining the correct angles of the welded elements.

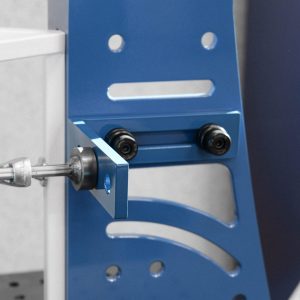

Attached to the side of the welding table top, it can be used as a small table top extension or a shelf for parts to be welded later.

Available with φ16 mm and φ28 mm hole patterns.

The 185×175 angle bracket from the EXPERT tool series can be used for EXPERT series welding tables.
The 185×175 angle bracket from the PRO tool series can be used for welding tables from the PRO and XWT series, as well as for modular welding tables.
The 185×175 angle bracket from the PLUS tool series can be used with welding tables from the PLUS, ECO, BASIC, DIY and XWT series.
