Welding Table SMART 15mm – 1500x1000mm

Description

SMART 15mm Welding Table 1500×1000 mm – solid workstation for small and medium-sized structures

On a 1500×1000 mm surface, the GPPH SMART 15mm welding table combines convenient access to the workpiece with a construction designed for everyday workshop use. The 15 mm thick welding tabletop made of S355J2+N steel, reinforcing ribs, milled and chamfered holes, and an engraved scale create a functional workstation for positioning and clamping small and medium-sized structures.

1500×1000 mm surface for everyday workshop work

The 1500×1000 mm format provides suitable space for working with frames, brackets, profiles, holders, and repetitive welded assemblies. The rectangular surface allows longer components to be arranged along the 1500 mm side, while the 1000 mm width makes it easier to access the structure from both sides of the workstation.

A 1500×1000 mm welding table can serve as the main workstation for small and medium-sized projects. It also works well as an additional work surface in a facility using several tables. A properly selected welding table top should provide enough space for both the workpiece being prepared and the required tooling. This format helps meet both requirements without taking up the space typical of larger models.

15 mm thick tabletop made of S355J2+N steel

The work surface is based on a plate made of S355J2+N steel with a thickness of 15 mm. Its properties allow steel components to be positioned and clamped securely, both when producing individual structures and short production runs.

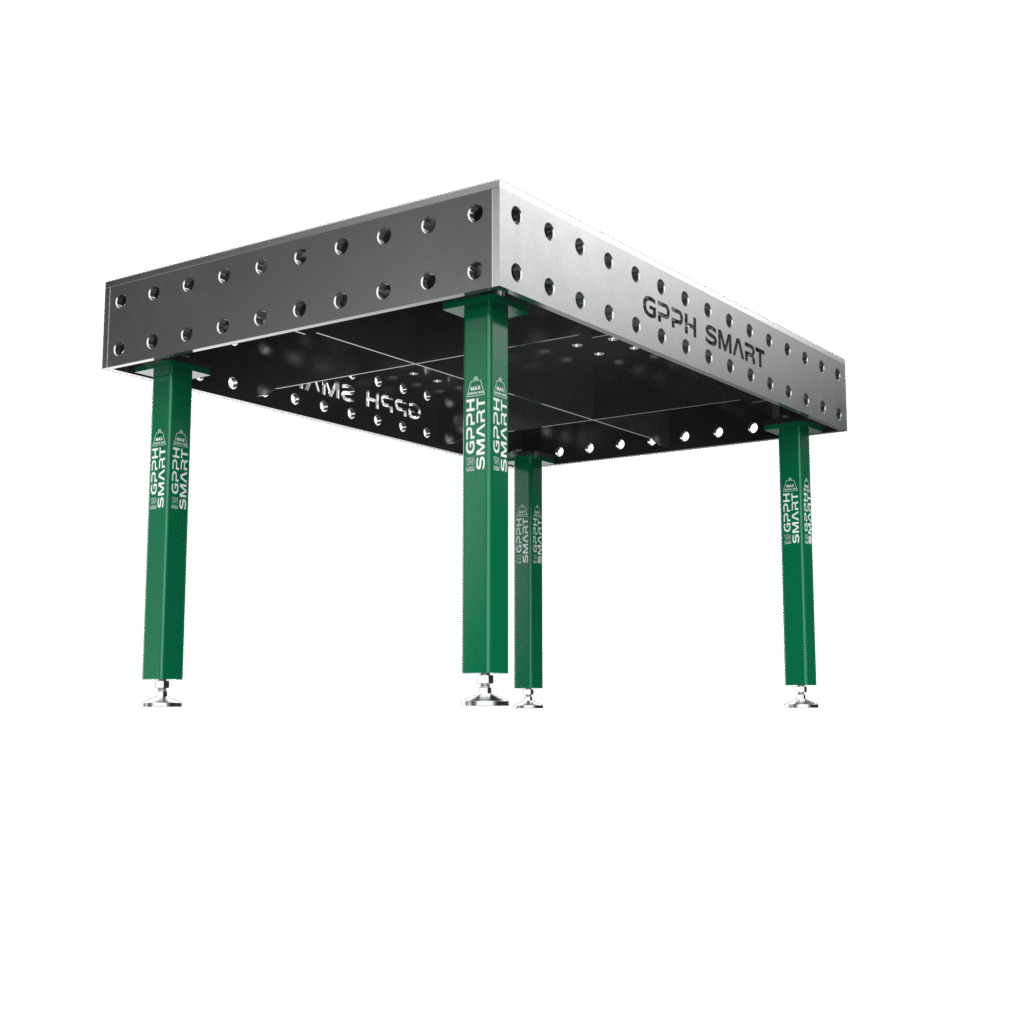

The work surface is reinforced by a system of ribs positioned underneath it. This supports the transfer of evenly distributed loads and helps maintain the rigidity of the workstation when the workpiece requires support and clamping at several points.

GPPH recommends: before choosing the 1500×1000 mm work surface, compare the dimensions of the parts you most often produce with the space taken up by clamps, angle brackets, and stop elements. After the structure is secured, the operator should still have free access to the reference points and the areas intended for welding.

Mounting holes on the 1500×1000 mm surface

The SMART 15mm configuration can use holes in the Ø16 or Ø28 system, arranged in a 100×100 mm grid or diagonal pattern. The choice should be matched to the pins, clamps, angle brackets you use and the planned layout of clamping points.

The hole edges are milled and chamfered, making it easier to insert pins and fit stop elements and clamping tools. After one job is completed, the tooling can be rearranged into a new layout adapted to the next workpiece.

Clamping options are not limited to the top surface. Two rows of holes in the side walls provide additional mounting points for supports, vertically positioned components, and parts of spatial structures.

Load capacity of the SMART 15mm welding table

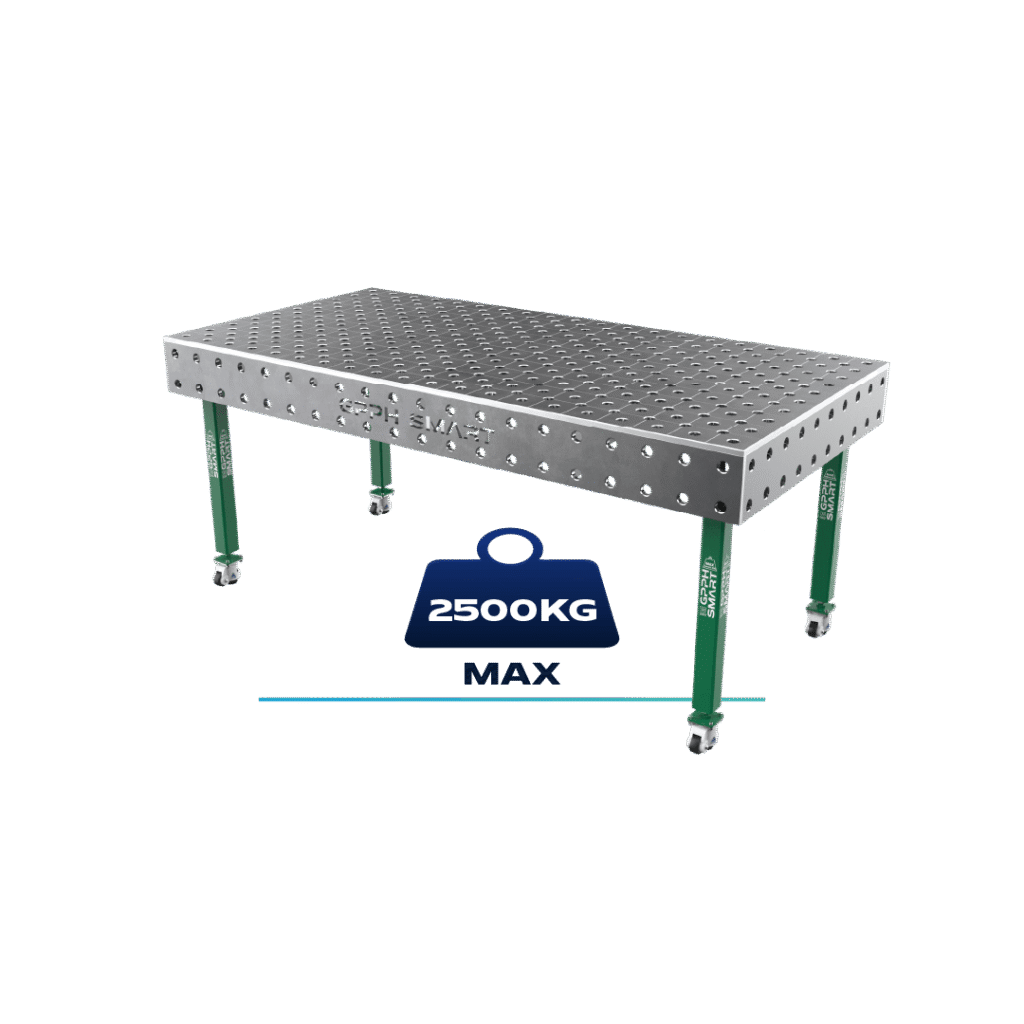

With the weight evenly distributed, the SMART 15mm 1500×1000 mm achieves a maximum load capacity of 2500 kg. This allows the workstation to be used for heavier frames and assemblies as well, provided their dimensions fit within the available work surface.

Engraved scale on the 1500×1000 mm tabletop

A 100×100 mm scale is engraved on the surface, providing the operator with fixed reference points when positioning profiles, frames, and other components. It makes it easier to prepare the initial layout without having to mark out all positions from scratch each time.

When producing repetitive structures, the markings help return to a previously verified arrangement of the workpiece and clamping tools. Combined with the hole system, they make it easier to recreate the configuration used in the previous production run.

The engraving is intended for approximate positioning on the work surface. Final verification of the dimensions and geometry of the structure should still be carried out using dedicated measuring tools.

Tabletop flatness after proper leveling

After the table has been properly leveled, the flatness tolerance of the SMART 15mm tabletop is ≤0.3 mm across the entire surface. To achieve this parameter, the workstation must be positioned in its final location and properly adjusted.

Proper table setup helps maintain repeatable workpiece positioning on the 1500×1000 mm surface. After moving the workstation or changing its arrangement, the level should be checked again and the setup adjusted if necessary.

SMART 15mm 1500×1000 mm welding table specifications

• work surface 1500×1000 mm,
• 15 mm thick tabletop made of S355J2+N steel,
• maximum load capacity of 2500 kg with evenly distributed weight,
• structure reinforced with stiffening ribs,
• hole system Ø16 or Ø28,
• 100×100 mm hole grid or diagonal pattern,
• milled and chamfered mounting holes,
• engraved 100×100 mm scale,
• two rows of holes in the side walls,
• flatness tolerance ≤0.3 mm after proper leveling,
• possibility to change the tooling configuration,
• format designed for small and medium-sized structures.

SMART 15mm 1500×1000 mm combines a durable 15 mm thick work surface with a size that provides convenient access to the structure being prepared. Choose SMART 15mm 1500×1000 mm for a workstation where you need a stable base for clamping small and medium-sized components.

Frequently Asked Questions

Will the SMART 15mm 1500×1000 mm work well as the main workshop table?

Yes. The 1500×1000 mm format provides enough space for working with small and medium-sized frames, profiles, brackets, and repetitive welded assemblies without taking up the space typical of larger tables.

How is the tabletop of the SMART 15mm 1500×1000 mm welding table made?

The tabletop is made of S355J2+N steel and is 15 mm thick. Its construction is reinforced by stiffening ribs, while the surface is equipped with milled and chamfered mounting holes and an engraved scale.

How to choose between the Ø16 and Ø28 system for the SMART 15mm 1500×1000 mm table?

The hole system should be selected primarily to match the pins, clamps, angle brackets, and other tooling being used. Before choosing, it is worth checking the compatibility of all clamping tools with the Ø16 or Ø28 system.
