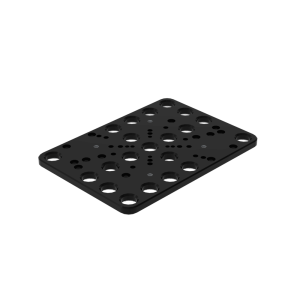

Płyta montażowa 350 mm

Opis

The mounting plate is used for precise positioning of the nozzles during welding. It is equipped with two types of holes:

1. Mounting holes – enable stable mounting of the plate on the welding table.
   2. Locating holes – enable quick and repeatable positioning of the collars using locating pins.

The layout and dimensions of the locating holes are in accordance with EN 1092-1, ensuring full compatibility with the collars and pins used in this standard. This makes the mounting plate easier to standardise the welding preparation process, speeding up work and ensuring the highest accuracy of settings.

Pros:

• repeatable setting of orifices in accordance with EN 1092-1,
  · quick assembly/disassembly thanks to fixing pins,
  · stable mounting of the plate to the table,
