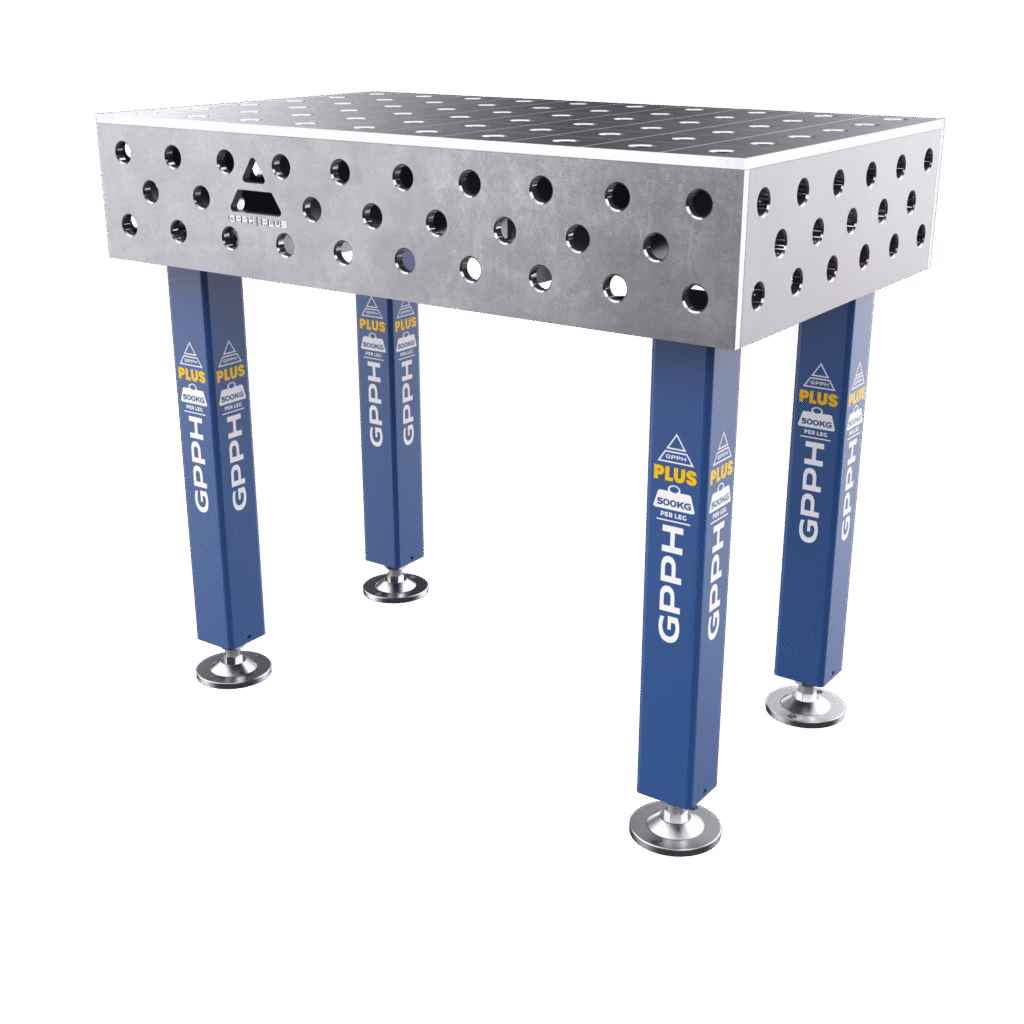

Welding Table PLUS 12 mm – 1000 x 600 mm

Description

Welding table PLUS 1000×600 mm – compact work surface for precision welding

Within a compact 1000×600 mm area, the welding table GPPH PLUS brings together the solutions needed for precise preparation of smaller workpieces. A worktop made of S355J2+N steel, ribbed reinforcement, milled and chamfered holes, and an engraved scale create a functional workstation wherever reducing the required floor space is important.

Welding tabletop 1000×600 mm for smaller structures

The 1000×600 mm format provides suitable space for working with smaller frames, holders, brackets and components that do not require an extensive workstation. The compact work surface helps reduce the space occupied in the workshop while maintaining convenient access to the structure being prepared.

A welding table measuring 1000×600 mm can serve as a primary workstation for smaller projects or as an additional work surface in a facility using several workstations. The smaller tabletop also makes it easier to organize the space around the workpiece during positioning and clamping.

S355J2+N material and reinforced construction

With a compact workstation, saving space is not the only priority; a reliable base for repeated positioning of workpieces is equally important. The work surface is formed by a welding tabletop made of S355J2+N steel. In the 1000×600 mm format, its compact area makes it easier to position and clamp smaller components consistently.

Reinforcing ribs are used beneath the tabletop to support its rigidity during everyday work. In a compact format, this is particularly important when several clamping points are concentrated within a relatively small area.

GPPH advises: limited workshop space is a good reason to choose this size only if the largest workpieces still fit together with the required tooling. The 1000×600 mm variant gives the operator easy access to smaller structures without taking up a large part of the workstation.

Mounting holes on the 1000×600 mm surface

A compact work surface requires careful use of every area intended for clamping. Therefore, the arrangement of milled and chamfered mounting holes is an important part of workstation organization.

When changing the workpiece, the operator can reconfigure the tooling layout without permanently assigning tools to a single position. This keeps the compact tabletop useful for a variety of smaller structures.

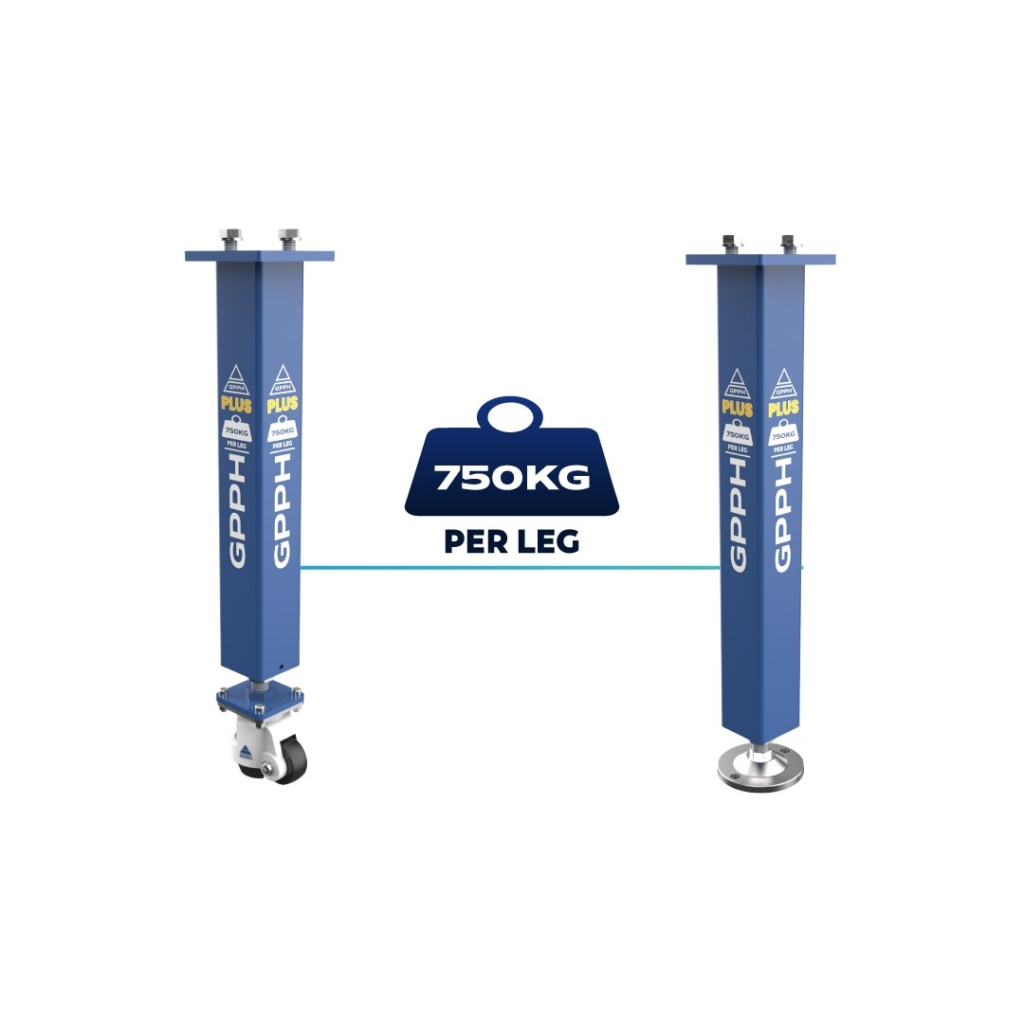

Load capacity of the welding table PLUS

Each welding table PLUS variant offers a load capacity of up to 750 kg per leg. This makes the workstation suitable also for working with heavier components and higher loads.

Engraved scale on the 1000×600 mm tabletop

When working with small components, even minor changes in position can affect the prepared setup. The engraved scale gives the operator a clear reference point without the need to determine the position from scratch each time.

The markings are also useful when similar holders, brackets or small frames return to production. Together with the hole system, they help recreate a previously proven component layout more quickly.

Welding table PLUS 1000×600 mm parameters

• work surface 1000×600 mm,
• tabletop made of S355J2+N steel,
• construction reinforced with stiffening ribs,
• milled and chamfered mounting holes,
• engraved scale supporting positioning,
• possibility to change the tooling configuration,
• compact format designed for smaller structures and workstations with limited space.

The compact PLUS 1000×600 mm format combines a small workstation with convenient positioning and clamping of smaller structures. Choose the PLUS 1000×600 mm for a workstation where a compact tabletop and easy access to the workpiece are important.

Frequently Asked Questions

Is the PLUS 1000×600 mm suitable where space around the workstation is limited?
Yes. The compact tabletop makes it possible to create a functional workstation for smaller structures without taking up the space typically required by larger tables.

How is the tabletop of the welding table PLUS 1000×600 mm made?
The worktop is made of S355J2+N steel and features a system of milled and chamfered mounting holes. The compact format provides enough space for both a small workpiece and the required clamping points.

When is it worth using this variant as an additional table?
It can serve as an auxiliary workstation for smaller tasks, while larger structures remain on the main workshop table.
