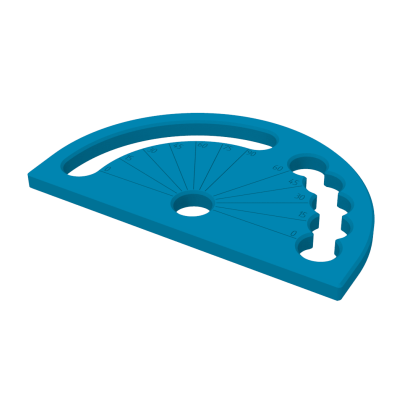

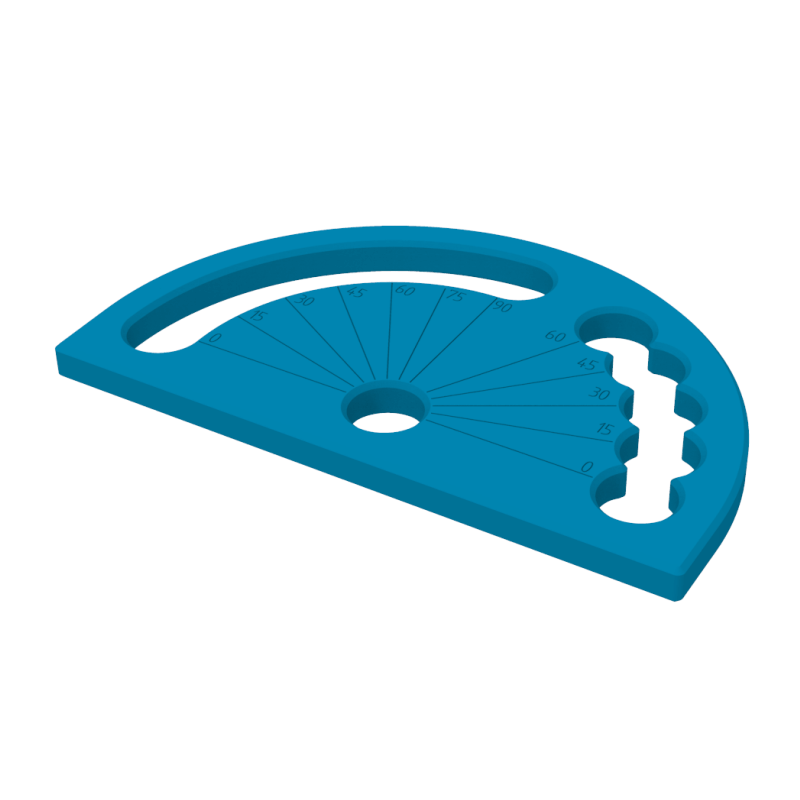

Gradskiva, System - Φ28, Series - PRO

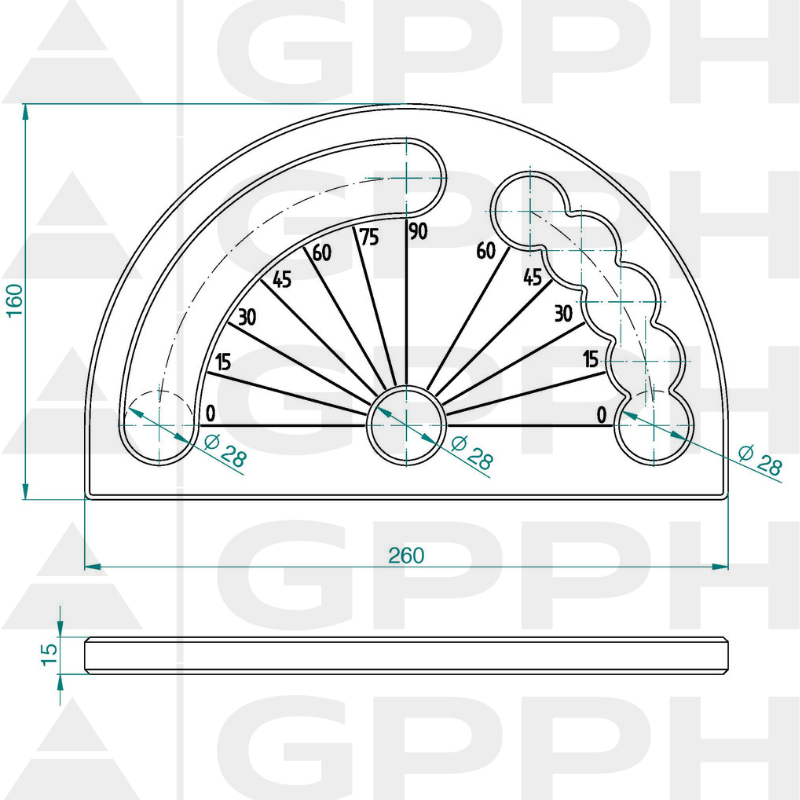

    Gradskiva, System - Φ28, Series - PRO technical drawing
      Gradskiva, System - Φ28, Series - PRO
      Gradskiva, System - Φ28, Series - PRO technical drawing

    Gradskiva Φ28 PRO

    Lägg till i önskelistan
    Hålsystem : Φ28
    Serie : PRO

    Protractor system , that will help you to position the welded components on the welding table at the right angle.

    57,00 €
    14 dni

    Protractor series system

    Protractor is a tool that will help you to position the welded components on the welding table at the right angle.

    Using the round holes and the slotted hole user can position it both on the table and by joining it with the other tools. It allows creating the 3D structures while keeping the appropriate angles of the welded components.

    It is available with the holes of system φ16mm and φ28mm.

    • Protractor from the EXPERT series tools can be used for the welding tables from the EXPERT series.
    • Protractor from the PRO series tools can be used for the welding tables from the PRO, XWT series and for the Modular Welding Tables.
    • Protractor from the PLUS series tools can be used for the welding tables from the PLUS, ECO, BASIC, DIY, XWT series.
    28_F_005_PRO

    Datablad

    Vikt
    2kg
    Mått och dimensioner
    260x160mm
    Verktygets tjocklek
    11mm, 15mm or 25mm
    Diameter på monteringshål
    φ28 or φ16
    Typ av verktyg
    Platt

    Särskilda referenser

    ean13
    5905398591855
