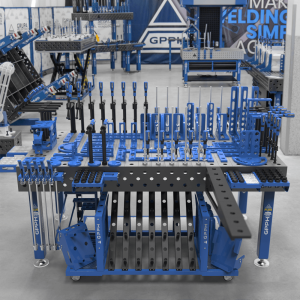

The GPPH PLUS welding table, measuring 2000×1000 mm, is a professional solution for demanding users. The 12 mm thick tabletop with dense ribbing provides a perfectly flat working surface, which guarantees precision and repeatability of the structures made. Milled and chamfered holes with a diameter of 28 mm, arranged in a 100×100 mm grid with an engraved scale, allow for easy installation of accessories such as clamps or angle brackets. The table is equipped with four 80×80 mm profile legs, each with a load capacity of 500 kg, which ensures stability and durability of the structure. Height adjustment in the range of 880–930 mm allows the table to be adapted to the individual needs of the user.
Advanced tool set with a wide variety of tools. Includes many types of clamps, angle brackets, stops and additional accessories such as table extensions and spatial protractors. Equipped with a tool trolley and mobile shelves, it ensures high work ergonomics and easy tool management. Ideal for intensive use in professional environments.
| XL SET | Total: 134 |
| Fastening clamp | 10 |
| Fastening clamp with lever | 5 |
| Variable throat depth clamp | 5 |
| Pipe clamp handle | 4 |
| Angle pipe clamp H=330 L=245, 45° | 4 |
| Pipe clamp H=330 L=175, 90° | 4 |
| Pipe clamp H=330 L=245, 180° | 8 |
| Stop 150 | 8 |
| Stop 225 | 2 |
| Stop 260 | 2 |
| Stop 500 | 1 |
| Protractor | 1 |
| Eccentric stop Ø 100 | 4 |
| Adaptation plate 150×150 | 1 |
| Flat angle bracket 275×150 | 2 |
| Flat angle bracket 320×150 | 2 |
| Flat angle bracket 350×250 | 2 |
| 75×75 angle bracket | 2 |
| 75×185 angle bracket | 4 |
| Angle bracket 125×185 | 2 |
| Angle bracket 185×175 | 4 |
| Angle bracket 200×200 | 4 |
| Angle bracket 300×190 (right) | 2 |
| Angle bracket 300×190 (left) | 2 |
| 450×250 angle bracket (right) | 1 |
| 450×250 angle bracket (left) | 1 |
| Angle bracket 200x300x150 | 2 |
| Angle bracket 275x400x200 | 1 |
| Angle bracket 350x500x250 | 1 |
| Spatial protractor 180x260x225 (right) | 1 |
| Fast assembly bolt | 20 |
| Positioning pin | 10 |
| Welding torch handle | 1 |
| Extension 1000×100 | 1 |
| Multifunctional block | 1 |
| Fast assembly bolt shelf S | 1 |
| Fast assembly bolt shelf M | 1 |
| Clamp shelf M | 2 |
| Flat shelf M | 2 |
| MIX shelf | 1 |
| Documentation shelf | 1 |
| Tool trolley L or M | 1 |
